Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator with Padded Carry Case

Please note, due to supply chain issues, current lead time is 2-3 weeks before shipment.

Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator with Padded Carry Case. The MPC-Rex Combo Kit is truly the one kit that finds it all, designed for utility locating professionals in Water, Sewer, Gas, Electric and Telecomm industries.

Be sure to read our comparison article entitled Schonstedt Rex Multi-Frequency Pipe & Cable Locator - For All Utilities versus Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator.

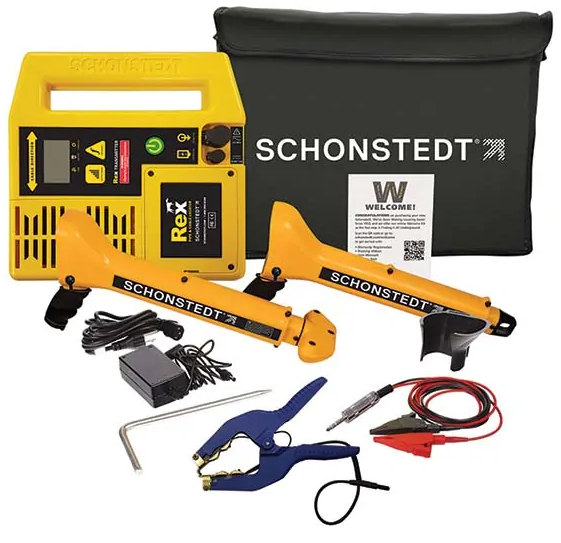

Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator with Padded Carry Case. The Kit includes a GA-92XTd Magnetic Locator and a Rex Multi-Frequency Pipe & Cable Locator and accessories. The entire system fits easily into a custom shoulder bag.

MPC-Rex Combo Kit includes:

• GA-92XTd Magnetic Locator
• Rex Multi-Frequency Pipe & Cable Locator
• Holster (p/n: PC10012)
• Conductive Clip Assembly (p/n: TM70000) which includes Standard Conductive Clips — C91010 (Red) and C91011 (Black)
• Soft Shoulder Bag (holds receiver, transmitter, accessories)
• Ground Stake (p/n: 208263)
• Power Supply & Cord for Transmitter charging

Schonstedt GA-92XTd Specifications

• BATTERY INDICATOR 4-segment LCD
• GAIN 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
• VOLUME 3 Levels: Muted, Medium and Maximum
• INPUT POWER One 9V Battery
• BATTERY LIFE 24 Hours (intermittent use)
• OPERATING TEMP -13° F to 140° F (-25° C to 60° C)
• OVERALL LENGTH Open – 26” (66 cm)
• Closed – 15.5” (39 cm)
• NOMINAL SENSOR SPACING 9.5” (24 cm)
• WEIGHT Approximately 2.4 lb (1.1 kg)
• WATER AND DUST RESISTANCE Rated IP54

Schonstedt Rex Receiver Specifications

• OPERATING FREQUENCY: Active: 512 Hz, 33 kHz and 82 kHz
• Passive: 50 or 60 Hz
• Sonde: 512 Hz
• BATTERY One 9V battery
• BATTERY LIFE: 12 hours (intermittent use)
• WEIGHT (INCL. BATTERIES): 2.8 lbs (1.25 kg)
• OPERATING TEMP: -4°F to 140°F (-20°C to 70°C)
• WATER AND DUST RESISTANCE: Rated IP54
• DIMENSIONS: Closed: 17.5" (~44 cm)
• Extended: Extended: 27.7" (~70 cm)
• MAX. DEPTH CAPABILITY: Approximately 19' (5.8 m)
• Sonde mode - approximately 5’ - 15’ (1.5 m to 4.2 m)

Schonstedt Rex Transmitter Specifications

• OPERATING FREQUENCY: 82kHz, 33kHz & 512 Hz
• OPERATING MODES: Conductive, Inductive, and Inductive Clamp
• MAX. OUTPUT POWER: (CONDUCTIVE MODE @ 1000 Ω LOAD) 512 Hz - 1/2, 1, 2 or 5 W
• 33 kHz - 1/2, 1, 2 or 5 W
• 82 kHz - 1/2 or 1
• BATTERY TYPE: Rechargeable NiMH pack (12V)
• BATTERY LIFE: 8 Hours (intermittent use)
• CHARGING: Internal Smart Charger powered by AC/DC power adapter
• DIMENSIONS 10” x 10.25” x 1.75” (25.4 cm x 26 cm x 4.5 cm)
• WEIGHT (INCLUDING BATTERIES): 3.5 lbs (1.6 kg)
• OPERATING TEMP: -4°F to 140°F (-20°C to 70°C)
• BACKLIGHTING: White LED array
• WATER AND DUST RESISTANCE: Rated IP54
