Garrett Axiom Gold Prospecting Metal Detector with Ultra-Pulse Technology

Garrett Axiom Gold Prospecting Metal Detector with Ultra-Pulse Technology

GOLD: BIG OR SMALL, GET IT ALL WITH AXIOM! The Garrett Axiom metal detector will include Wireless Garrett MS-3 headphones and two search coils to maximize your gold nugget detecting and locating. The two included Axiom search coils are the 13"x11" DD and 11"x7" Mono.

Advanced pulse timings of the Axiom detector provide enhanced sensitivity and complete versatility in the most extreme mineralized soils and in saltwater. Choose from four settings, each ideally engineered for finding all types of gold, from larger nuggets to tiny sub-gram pickers.

Garrett Axiom Detection Modes

The Axiom Detector has four Search Mode options: Fine, Normal, Large and Salt. Each Search Mode is optimized for specific types of detecting, as detailed below. The Factory Default mode is Fine. Press MENU button until MODE is selected, then use the Menu Plus (+) or (-) button to select the desired mode. Press Operate to exit the MENU, or press MENU to proceed to next menu item.

FINE Mode

Provides the maximum possible detection on small, low-conductivity targets (such as fine gold and specimen gold) while also providing the best detection of most medium and large targets. Because of it increased sensitivity to small/fine targets, FINE Mode can be more susceptible to ground minerals, hot rocks or saltwater. FINE is typically the preferred mode for most conditions.

NORMAL Mode

Provides very good detection on all size targets. NORMAL will be less reactive in highly mineralized soil but will have reduced detection of very small targets.

LARGE Mode

Maintains strong detection of large targets while reducing small and medium targets. Most important, this mode reduces susceptibility to highly mineralized ground and hot rocks.

SALT Mode

Designed for use in mineralized areas with wet salt content, primarily for wet saltwater beaches. SALT Mode may also be useful for dry inland salt lakes and goldfields with high salt concentration, depending on moisture content. But it is recommended to first try the other modes for these inland conditions.

Ultra-Pulse Technology

Advanced pulse timings provide enhanced sensitivity and complete versatility in the most extreme mineralized soils and in saltwater. Choose from four settings, each ideally engineered for finding all types of gold, from larger nuggets to sub-gram pickers.

• 4.2 lbs. (1.9 kg) with 11" mono coil and coil cover
• 4.7 lbs. (2.1 kg) with 13" mono coil and coil cover

TERRA-SCAN

Axiom’s advanced system provides independent dual-channel ground balance that covers the full range of mineralization, from heavily mineralized magnetic ground to saltwater, and everything in between.

IRON CHECK

This video shows a quick demonstration of how this feature helps you audibly identify iron targets with the Axiom when using a DD searchcoil.

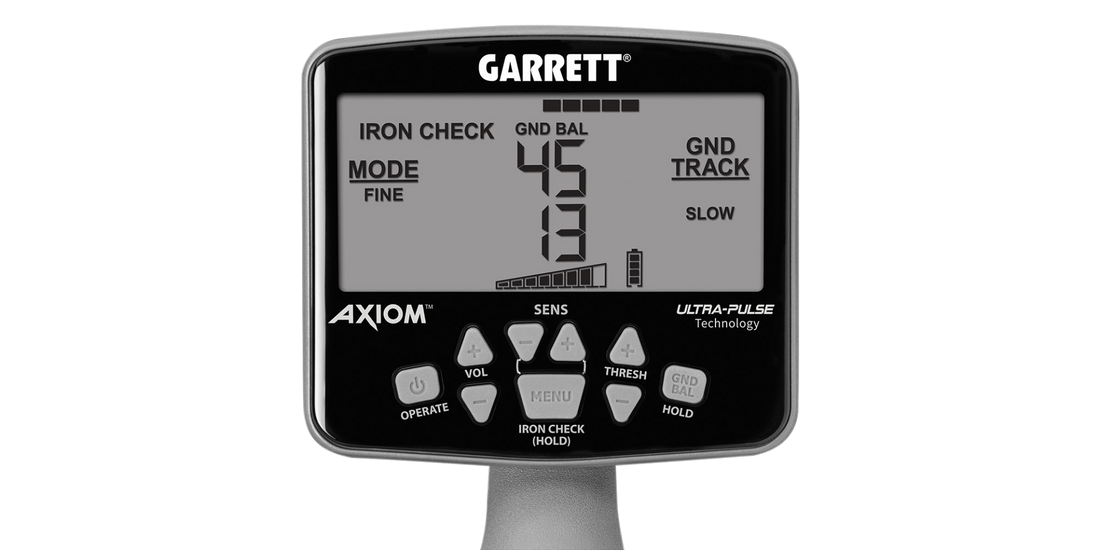

• QUICK ACCESS, FULL RANGE OF CONTROLS
• COLLAPSES TO 25 INCHES (63.5 CM)
• COLLAPSES TO 25 INCHES (63.5 CM)
• SEARCHCOIL OPTIONS

COLLAPSES TO 25 INCHES (63.5 CM)

• 16" x 14" in Mono or DD
• 13" x 11" in Mono or DD

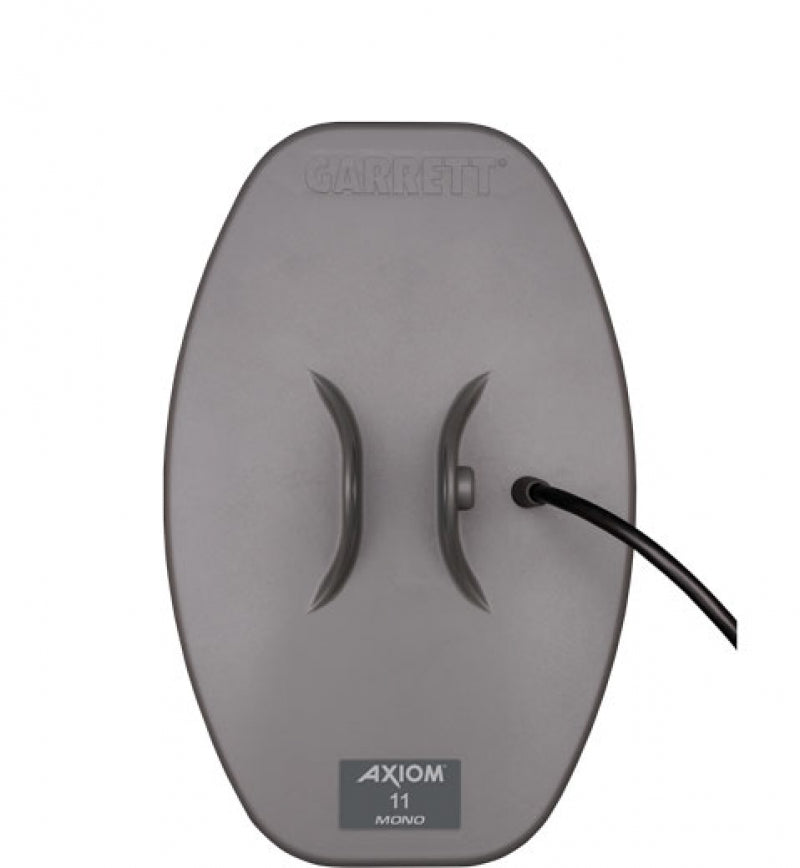

• 11" x 7" in Mono or DD

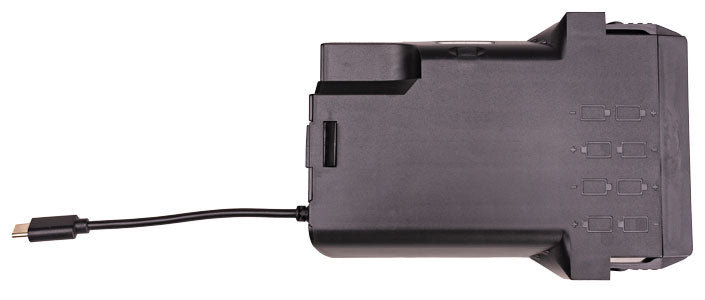

EXTREME BATTERY LIFE - BUILT-IN, HIGH-CAPACITY LITHIUM-ION BATTERY

2 AUDIO TYPES

Choose from PWM Audio or VCO Audio options. See this short video demonstration of the audio types.

Going for Gold with the Axiom Detector Video

Garrett Axiom: Find More Gold! Video

Getting Started with the Garrett Axiom Video

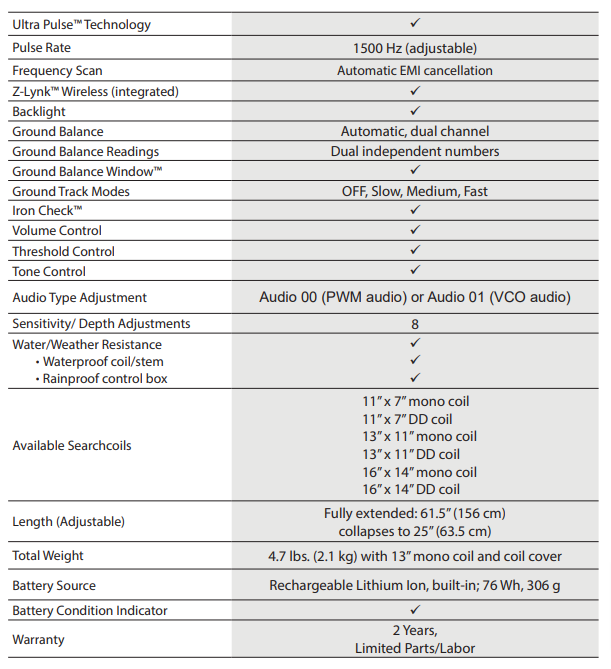

Garrett Axiom Gold Prospecting Metal Detector Specifications
