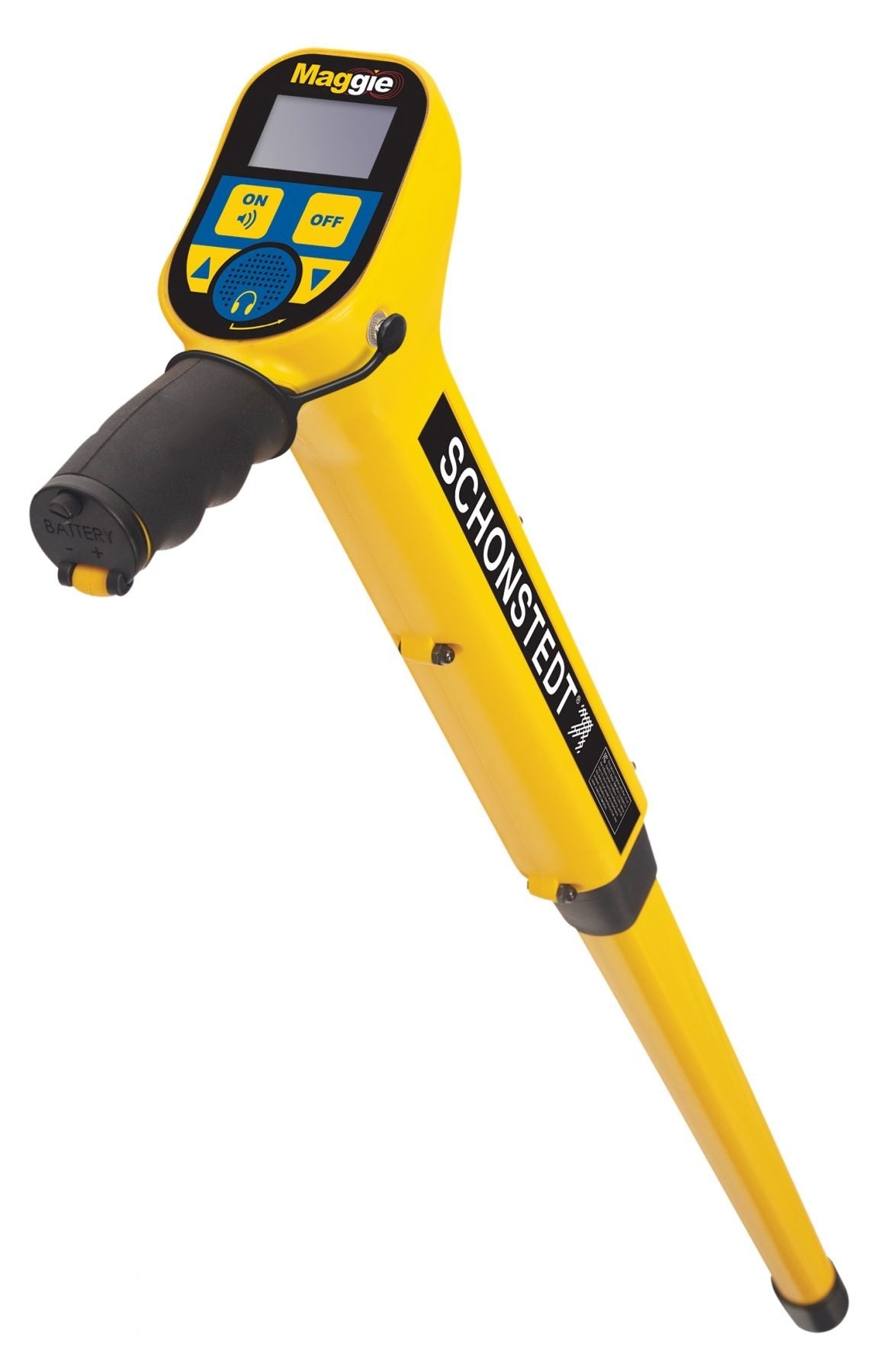

Schonstedt Maggie Magnetic Locator

Used Across a Wide Range of Applications

This device is used across a wide variety of industrial applications. From road construction and maintenance to land survey. As a piece of land surveying equipment, Schonstedt Instrument Company has designed the device for easy location of a wide variety of ferromagnetic objects including survey pins. This model is also used by professional in the following industries: Surveying and Mapping, Construction and Excavation, Contract Locating, Gas and Oil Pipelines, Roads and Transportation, Facilities Management and Power and Electric.This Schonstedt locator provides no response to aluminum, brass, or copper since it is a magnetic locator. This locator is made of high performance components and comprises incredibly tough production techniques which enable it to hold up to a lot of wear and tear. There is also an IP54 rating on this device which offers dust resistance and water resistance. The device will locate buried ferrous objects and was designed for use in challenging field conditions. If you would like to select a volume level, you can choose between the following three options: muted, medium and high volume.

Schonstedt Maggie Magnetic Locator Features

• Highest Sensitivity
• Ergonomic & Durable
• Dust & Water Resistant (Rated IP54)
• Easy access to battery removal
• Expanding bar graph indicates polarity (positive or negative) and relative signal strength
• HeliFlux^® sensors
• Modular construction and high-performance components
• Includes a soft carrying case and arm strap sling for ease of carrying through rough terrain, hands-free
• 7-year warranty

The Maggie is a Schonstedt magnetic locator. With the Schonstedt Maggie, you get the advantages of both the flagship GA-52Cx and the ultra-portable GA-92XTd. With this, you will enjoy both sensitivity and precision, as well as effortless single-handed operation. This model contains HeliFlux® sensors for optimal performance. It responds only to iron and steel objects as it is a magnetic locator. You can easily locate pipe joints, iron pipes, manhole covers, and other ferrous metal objects with pinpoint accuracy. The device is powered by a 9v alkaline battery. The design allows for easy battery removal and replacement.

Schonstedt Maggie Specifications

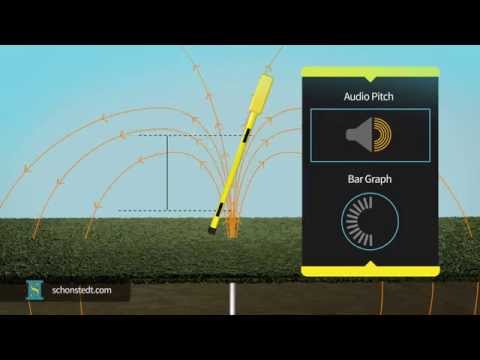

• AUDIO OUTPUT: Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz
• DISPLAY OUTPUT: Expanding bar graph indicates polarity (positive or negative) and relative signal strength
• BATTERY INDICATOR: 4-segment LCD
• GAIN: 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
• GAIN MEMORY: Gain defaults to Medium when powering off/on
• VOLUME: 3 Levels - Muted, Medium, and High
• INPUT POWER: One 9V Battery (Included and Installed for Immediate Use)
• BATTERY LIFE: 24 Hours (intermittent use)
• OPERATING TEMPERATURE: -13°F to 140°F (-25°C to 60°C)

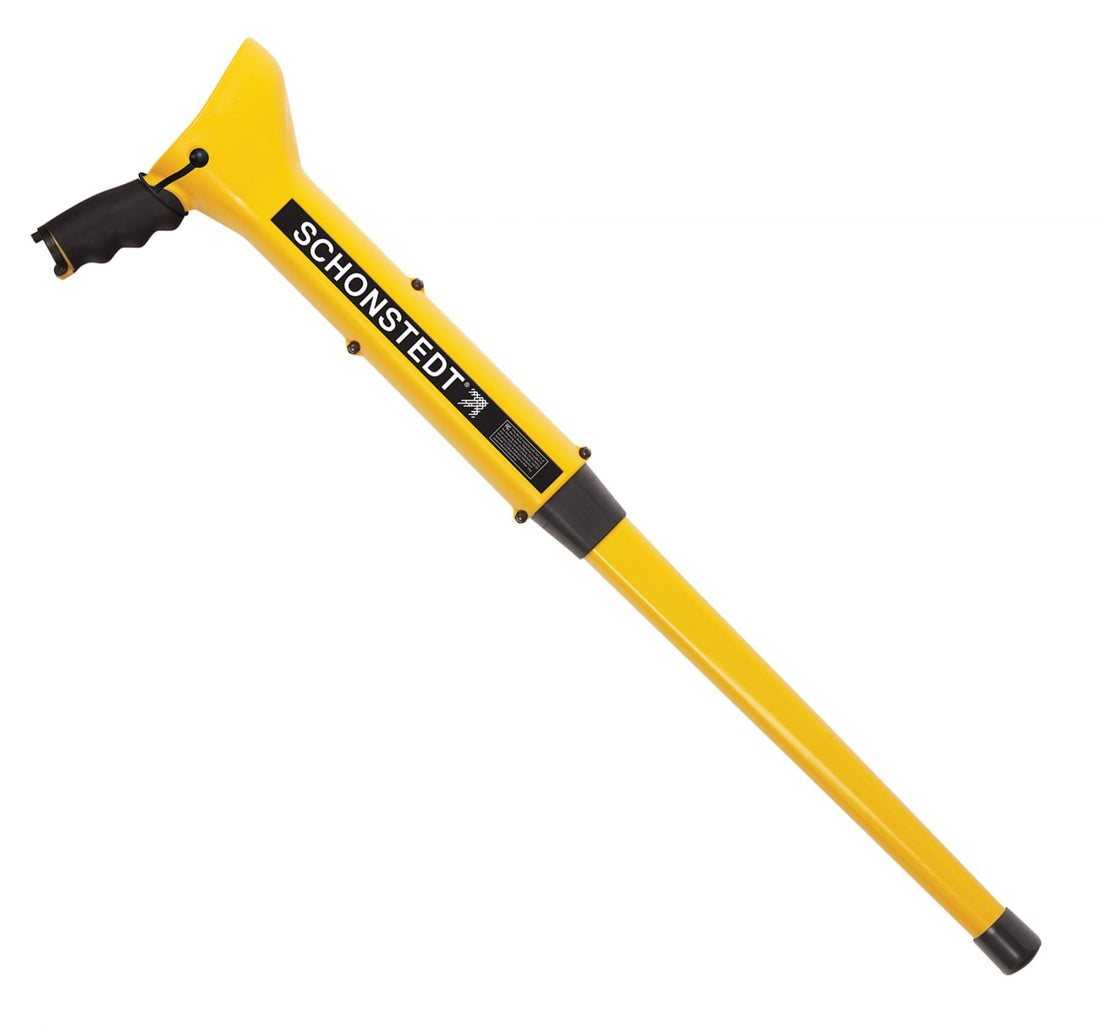

• OVERALL LENGTH: 32.5" (83 cm)
• NOMINAL SENSOR SPACING: 20" (50 cm)
• WEIGHT: Approximately 2.6 lbs (1.2 Kg)
• CONSTRUCTION: High impact ABS
• DUST & WATER PROTECTION: Rated IP54

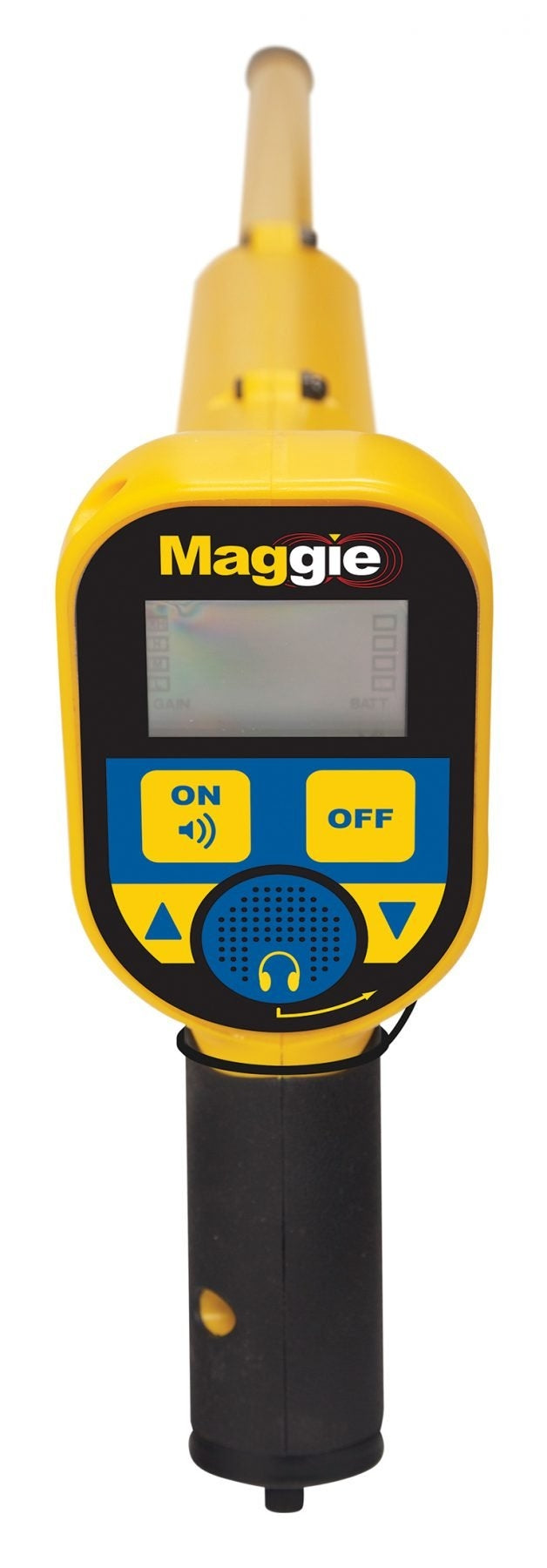

In addition, there are four different audio gain settings available via the membrane switch. You can select from low, medium, high, and extra high gain levels. The device offers a modular design, high-performance components, and a 7-year warranty. It weighs approximately 2.6 lbs (1.2 kg). An instruction manual is available for download. It ships with a soft case, and related products are shown in the compatible accessories section.

Schonstedt Maggie Specifications

• AUDIO OUTPUT Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz
• DISPLAY OUTPUT Expanding bar graph indicates polarity (positive or negative) and relative signal strength
• BATTERY INDICATOR 4-segment LCD
• GAIN 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
• GAIN MEMORY Gain defaults to Medium when powering off/on
• VOLUME 3 Levels: Muted, Medium, and High
• INPUT POWER One 9V Battery, Included and Installed for Immediate Use.
• BATTERY LIFE 24 Hours (intermittent use)
• OPERATING TEMPERATURE -13°F to 140°F (-25°C to 60°C)
• OVERALL LENGTH 32.5" (83 cm)
• NOMINAL SENSOR SPACING 20" (50 cm)
• WEIGHT Approximately 2.6 lbs (1.2 Kg)
• CONSTRUCTION High impact ABS
• DUST & WATER PROTECTION Rated IP54

In addition, there are four different audio gain settings available to you through the membrane switch. You will be able to select from low, medium, high and extra high levels of gain. There are many features that make this device stand out from the crowd, including a modular design, high-performance components, and a 7 year warranty. It is light weight at approximately 2.6 lb or 1.2 kg. An instruction manual can be downloaded online. It ships complete with a soft case included and all related products are shown in the compatible accessories section on this page.

Schonstedt Maggie Standard Equipment:

• Padded Carrying Case with Strap (p/n: MA50000)
• One 9V Battery (in unit)
