Leica IDS C-Thrue Concrete Scanner

SKU: 6014777
Regular price

$22,230.00

Add Package?
Ready to ship
EasyGift for Metal DetectorUSA shipment only

    Buy With Confidence:

  • Free shipping over $150*
  • 45-Day Returns*
  • Live Inventory In Stock: (102)
  • Ready to ship
  • Usually Ships in 1-3 Days

Leica Geosystems Concrete Scanner Details

Questions Answered

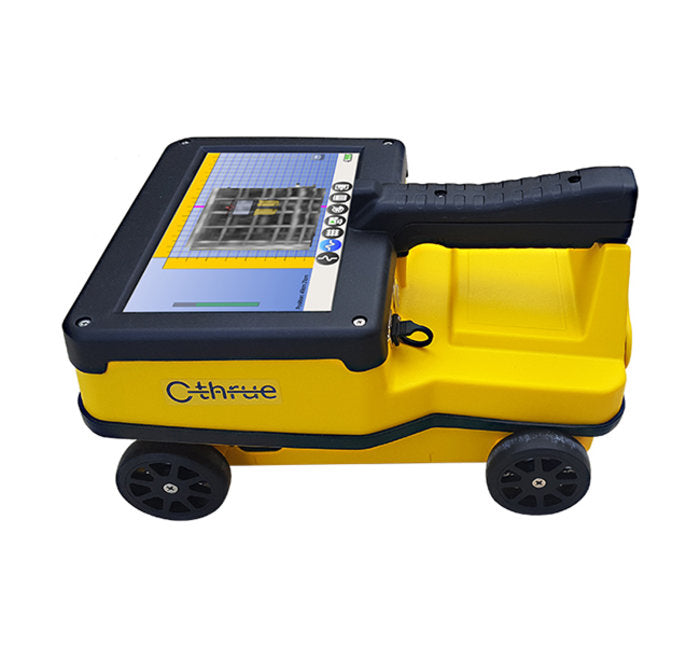

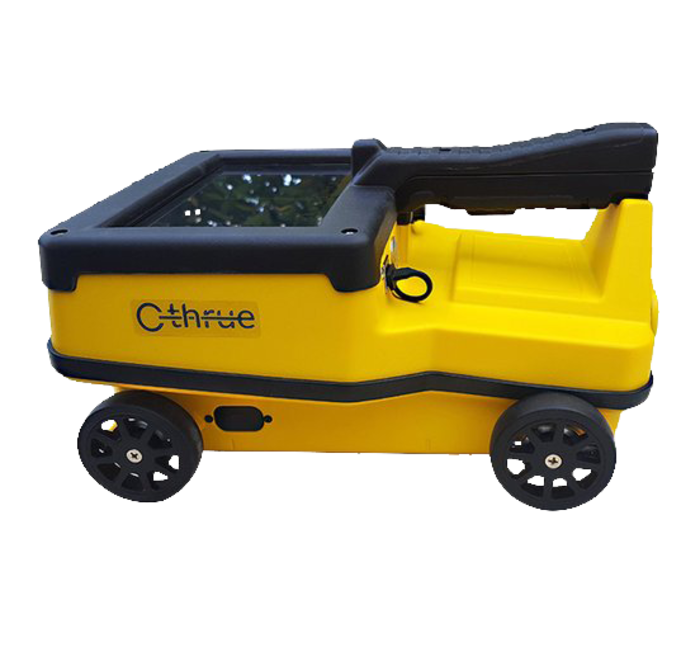

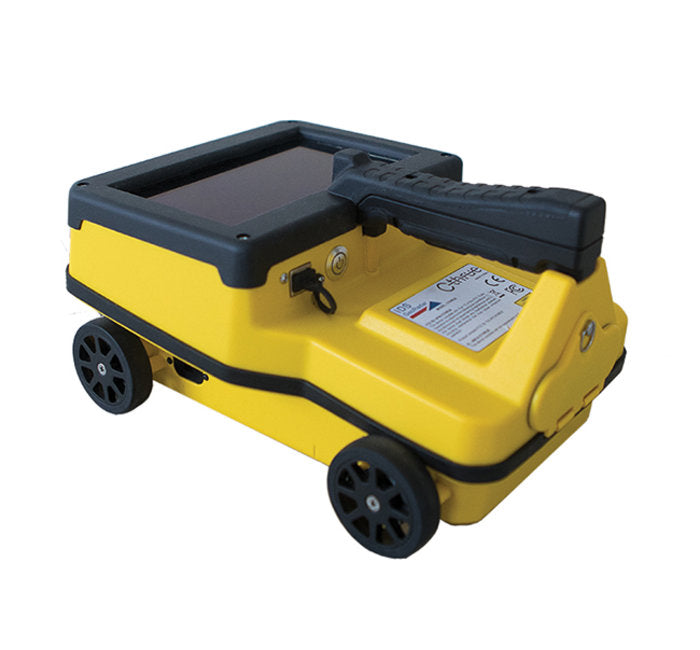

C-thrue: All-in-One Ground Penetrating Radar (GPR) for Concrete Structures

The C-thrue is a state-of-the-art all-in-one Ground Penetrating Radar (GPR) designed for accurate scanning and real-time analysis of concrete structures. Ideal for construction and service companies, as well as civil and structural engineers, this solution allows you to easily locate rebars, voids, post-tension cables, cavities, and other objects buried within the structure—before any cutting or drilling takes place. With C-thrue, you can make informed decisions, improve safety, and reduce costly errors in your projects.

Efficient and Reliable Concrete Analysis

C-thrue is a robust, user-friendly solution for seeing through concrete and revealing critical data that leads to optimal decision-making. This tool is perfect for a variety of construction operations including building renovation, overpasses, monuments, bridges, tunnels, and more. It also facilitates a thorough analysis of original engineering projects, offering real-time comparison with the as-built structure.

Equipped with a compact and light telescopic pole and external controller, C-thrue ensures flexibility and can be transported easily to challenging locations such as under decks or along vertical walls.

Thanks to its external controller, data interpretation becomes faster and easier, providing real-time data processing and visual results through Augmented Reality for more efficient decision-making.

Features and Benefits:

  • Clearer and Faster Surveys: Detect both first and second levels of rebars with double polarization.
  • Safe Drilling: Automatic insight into rebars and voids, improving safety before drilling or cutting into concrete.

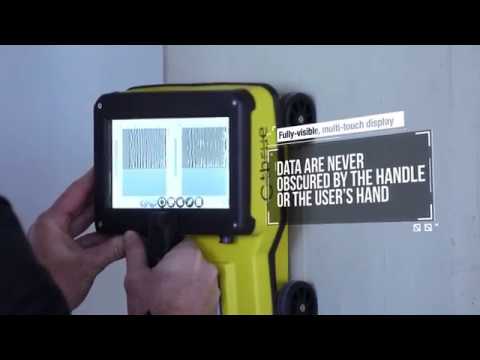

  • Fully Visible, Multi-Touch Display: Data on screen is never obscured, offering enhanced user experience.
  • Simplified Data Interpretation: Visualize acquired data in 3D models for optimal decision-making.
  • Increased Data Accuracy: Eliminates error-prone manual grids with automatic positioning and navigation.

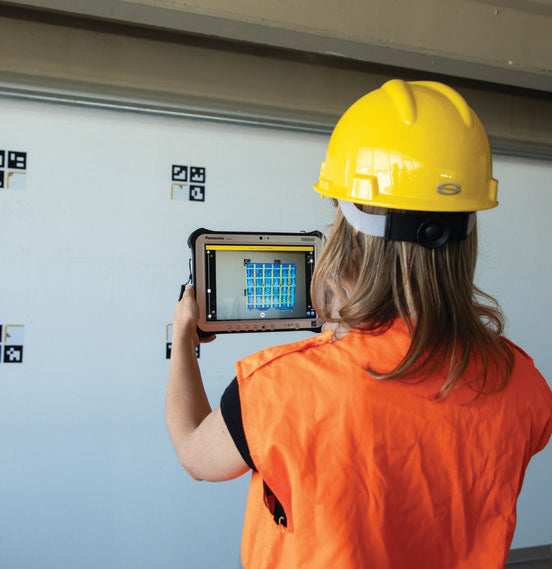

  • Advanced Data Visualization: Utilize Augmented Reality for 3D data visualization, shareable across operators in real-time.
  • Automated Data Acquisition and Analysis: Automatic rebar layer detection with result exportation.
  • Unmatched Flexibility: A lightweight, compact, drop-resistant system adaptable to any operation or construction site.

Technical Specifications

Antenna Center Frequency 2.0GHz
Number of Antennas 4
Antenna Polarization Horizontal and Vertical
Number of Radar Channels 2
Scan Interval Up to 10 scans/cm
Depth Range Up to 80cm (31.5in)
Display Modes B-scan and C-scan (Radar Tomography)
Positioning System "Virtual Pad" with laser sensors
AC Power Conduits Detection EM Sensor Integrated (50/60 Hz)
Battery Li-ion Battery, 15V, 3.2Ah, 3-hour runtime
Data Storage 32GB
Connectivity USB, Wi-Fi

Mechanical Specifications

Dimensions (LxWxH) 285mm X 200mm X 160mm (11.2in X 8.6in X 6.3in)
Weight 2.4kg (5lb) with battery
Display 7.0 inches TFT multi-touch

Environmental Specifications

Operating Temperature -20°C to +50°C (-4°F to +122°F)
Storage Temperature -40°C to +60°C (-40°F to 140°F)
Environmental Rating IP65

Software Specifications

C-Thrue Software
  • Real-time radar data acquisition and visualization in B-Scan
  • Automatic rebar/void detection and feature marking
  • Real-time data editing and navigation tool
  • Augmented Reality 3D visualization
  • Metric and Imperial units available
  • Available in 20+ languages
  • Automatic job reporting
  • Real-time power conduit sensing display

Product Codes:

C-Thrue Concrete Scanner - Article number: 868510

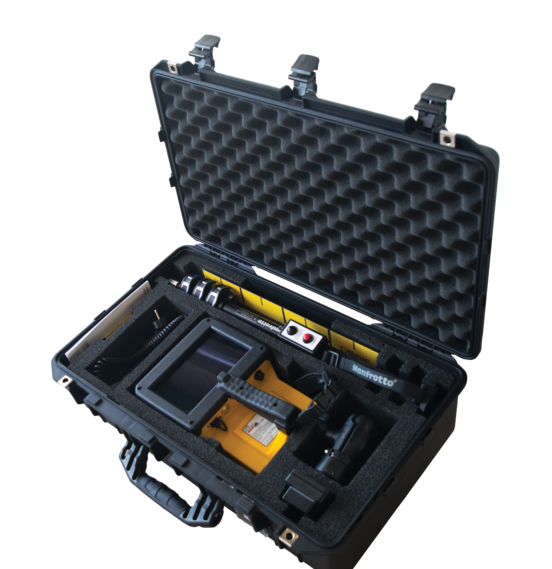

C-Thrue Full Concrete Scanner Package - Article number: 6014777
