JW Fishers SAR-1 Search and Recovery Underwater Metal Detector with 8" Coil

Download Datasheet

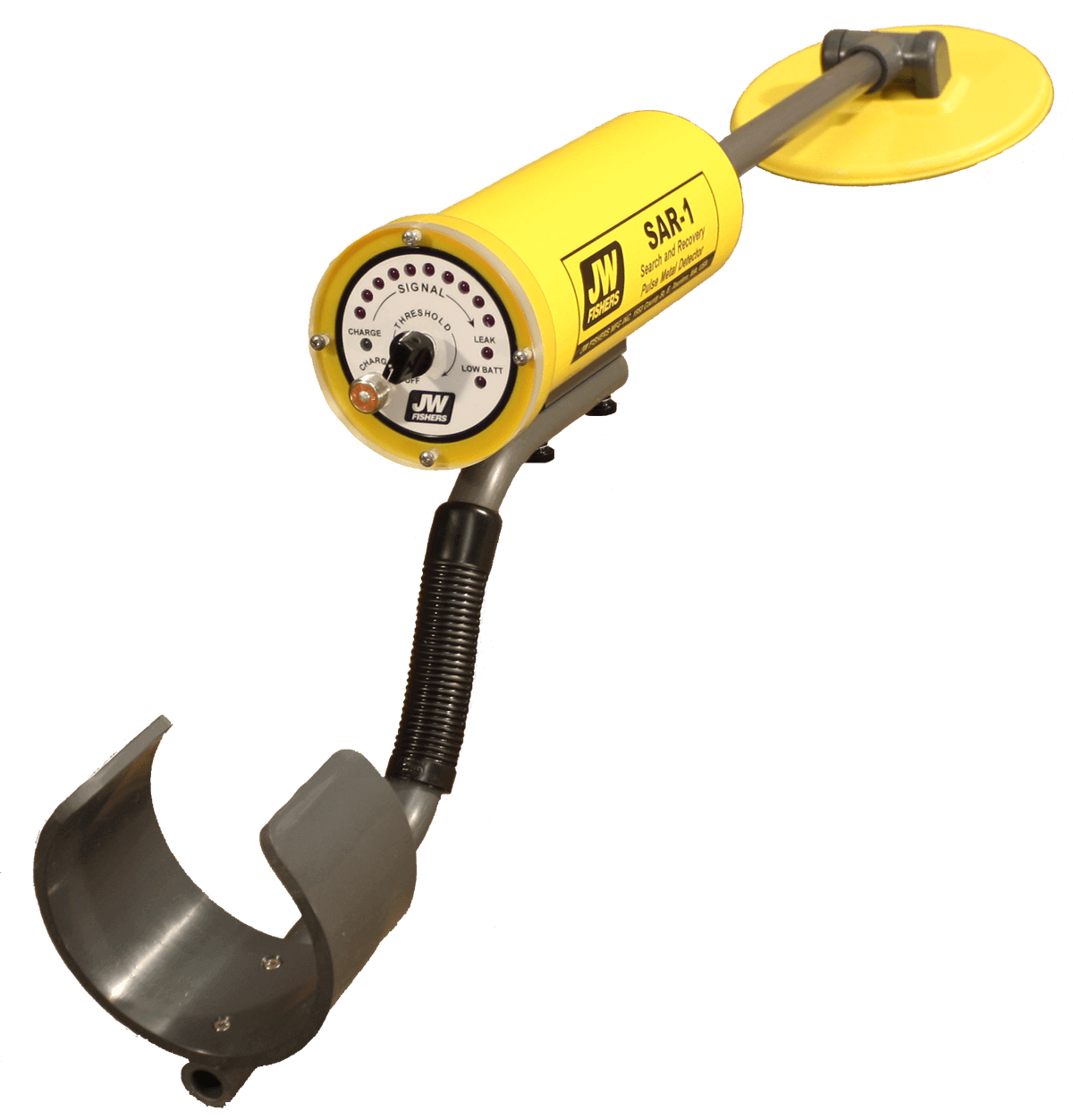

JW Fishers SAR-1 Search and Recovery Underwater Metal Detector SAR-1

JW Fishers SAR-1 was specifically designed for military, law enforcement and public safety dive teams to locate metallic objects in low visibility environments. The "snareless" SAR-1 has a streamlined design with no external wires or cables which makes this detector the ideal tool for work in underwater environments with potential entanglement hazards.

The SAR-1 has both visual with ten ultra bright LEDs and sensory vibration target indicators. When the detector approaches a metal object the handle begins to vibrate and a few of the LEDS illuminate. As the bright yellow search coil gets closer to the target, the vibration becomes more rapid and more of the high intensity red LEDs light up. The number of LEDs that illuminate is helpful in determining the size and burial depth of the target. Small targets may only illuminate 2 or 3 LEDs whereas larger targets will light up the complete display.

Fresh and Salt Water

The SAR-1 metal detector works equally well in fresh or salt water, and detects a variety of targets including shell casings, handguns, rifles, shotguns, knives, UXO, mines, and any type of explosive device containing metal. The unit will also detect large targets such as an automobile or aluminum boat up to 6 feet below ground. This high performance Pulse Induction metal detector detects both ferrous and nonferrous metal objects, while ignoring minerals in the environment. The detector will not give false signals from salt water, coral, high iron rocks, or other ground mineralization, as some other types of detectors do. As with all JWF detectors, the detection range is not affected by the material between the search coil and the metal target. Whether detecting through air, water, silt, sand, mud, or rock, the detection range remains the same.

The SAR-1 detector is constructed of corrosion proof materials and comes with AC and DC battery chargers, and a carry bag. Rechargeable batteries power the detector for 12 hours before requiring an overnight recharge. Batteries can be easily field replaced to allow around the clock operation. Unlike some other detectors, the electronics compartment can be opened for inspection or battery replacement without voiding the warranty.

JW Fishers SAR-1 Underwater Metal Detector Specifications

• “SNARELESS” DESIGN
• VIBRATING HANDLE FOR TARGET IDENTIFICATION
• BRIGHT RED LED DISPLAY
• EXTREMELY SENSITIVE
• EQUALLY SENSITIVE IN SALT OR FRESH WATER
• DETECTS ALL METALS
• WILL NOT DETECT MINERALS
• RECHARGEABLE BATTERIES
• 200 FOOT DEPTH RATING
• SLIGHTLY NEGATIVE BUOYANCY

Sensitivity with 8” Search Coil

You can expect the following detection ranges with the SAR-1 whether in air or buried in mud, coral, sand, dry or wet, fresh or salt water.

• Small shell casing: 3.5 inches (9cm)
• Medium shell casing: 7 inches (18cm)
• Large shell casing: 9 inches (23cm)
• Small knife: 10 inches (25cm)
• Large knife: 12 inches (30cm)
• Small handgun: 13 inches (33cm)
• Large handgun: 18 inches (46cm)
• Cellular phones: 12-18 inches (30cm-46cm)
• Shotgun: 2 feet (61cm)
• Large targets: up to 6 feet (183cm)

JW Fishers SAR-1 Underwater Metal Detector Dimensions and Weight:

SAR-1 with attached coil: 35 inches
Shipping box: 8”H x 12”W x 36L
SAR-1 is 5.4 lbs. (air) / slightly negative (water)

Materials and Color:

Case: High impact PVC, yellow
Handle: High impact, PVC gray
Search Coil: ABS, yellow

 WARRANTY: The SAR-1 is covered by JW Fishers 2 year exclusive, unconditional warranty.
