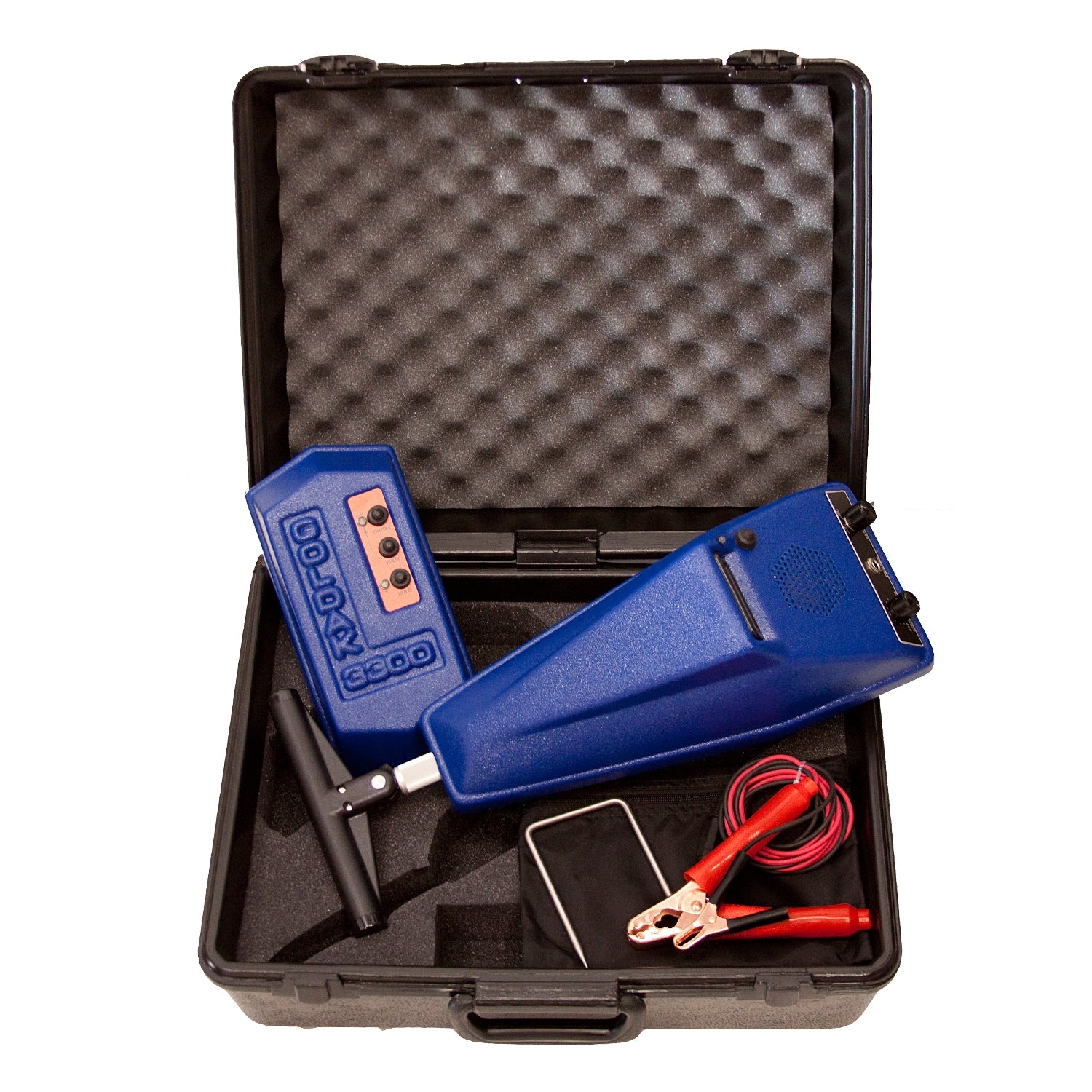

Goldak 5600-SI Pipe & Cable Locator

High performing, versatile 116KHz line locator used in all industries

Out Performs Competitive Equivalents!

• Easily separate pipes and cables in close proximity
• Compact, portable, lightweight, and ergonomically designed
• Gas, Water, Power, Telecom, Cable
• Includes the patented SI-Antenna
• Unique multi-position antenna ensures pin-point, precision locating
• Wide-range controls to adjust amplifier gain, meter sensitivity, and power level
• Long battery life

Achieve Pin-Point Accuracy with Goldak’s Rugged and High Performing 5600 Pipe & Cable Locator

The Model 5600-SI offers the ultimate design in pipe and cable locating equipment and far exceeds the performance levels of competitive models. This portable electronic instrument is used extensively by utility companies such as gas, telephone, power, and cable television industries, as well as municipalities and contractors. When working in congested and difficult areas, the 5600-SI ensures pinpoint accuracy and solves a wide variety of underground locating problems.

Equipped with the patented SI Super Induction Antenna^®

Patented technology ensures long-distance tracing beyond competitive instruments

• Noise and static-free operation
• Lighted tracking display
• Operated with one control
• Exceptionally powerful audio output
• Defined signal-coupling: Pipes and cables
• In close proximity are easily separated
• Outperforms competitive instruments

The Optional Goldak GC-2 Inductive Clamp improves versatility by enabling an operator to trace one or several lines within 5-1/4 inch diameter. The operator may energize a line simply by plugging it into the direct output jack of the transmitter and clamping it around the line.

Goldak 5600 SI Pipe and Cable Locator Specifications:

DIMENSIONS

• Transmitter: . . . . . . . . . . . . . 11” x 5” x 3.75”
• Receiver: . . . . . . . . . . . . . . . . 20.5” x 6.5” x 9”
• Carrying Case: . . . . . . . . . . . 20” x 16” x 8”
• OPERATING WEIGHT
• Receiver: . . . . . . . . . . . . . . . . 3 lbs.
• Transmitter: . . . . . . . . . . . . . 2 lbs.

SHIPPING WEIGHT

• 16 Pounds
• OPERATING TEMPERATURE
• 20° to 150° F
• OUTPUT FREQUENCY
• 116 KHz + 0.3%
• BATTERIES
• 8 each 1.5V “AA” Size Alkaline Batteries for Transmitter and Receiver

BATTERY LIFE

• 30 Hours

AUDIO OUTPUT

• Built-In Speaker or Headphones

OPTIONAL ACCESSORIES

• GC-2 Inductive Clamp*
• 8 Ohm Stereo Headset
• Duct Locating Transmitters
• “C” Cell Version available by special order

SONDES

• 3310 . . . . . . . . . . . . . . . . . . . . up to 12 ft.
• 3350 . . . . . . . . . . . . . . . . . . . . up to 12 ft.
• 3330 . . . . . . . . . . . . . . . . . . . . up to 25 ft.
• SR-116k . . . . . . . . . . . . . . . . . up to 25 ft.
• SR-2116 . . . . . . . . . . . . . . . . . up to 60 ft.

Add any of Goldak's line of optional 116KHz sondes shown above to locate empty conduit or non-metallic sewer lines.

 WARRANTY

• One year on manufacturing defects and workmanship
