Fisher XLT-30 C Leak Detector With Little Foot

Fisher XLT-30-C Liquid Leak Detector

Fisher's reliable Littlefoot is an ultra sensitive ground microphone about the size of a computers "mouse". Excellent for leak locating on interior walls and surfaces. The Hydrophonic Probe works outstanding when direct contact can be made.

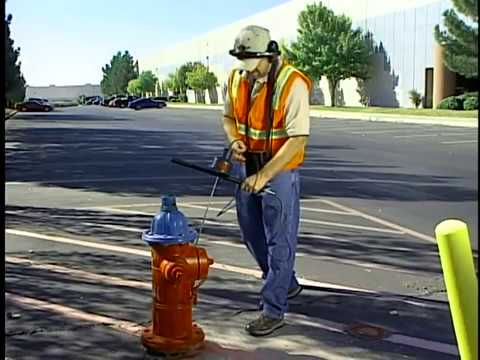

The XLT-30-C features advanced electronic amplification and filtering, a tactile keypad, an easy to read digital display and a notch feature which allows independent suppression of outside interfering noise. You can detect leaks easily with the Water Leak Detector. This model can detect leaks at hydrants, meter pits, valves, and underground. This unit detects and pinpoints liquid leaks in pipes. A notch filter system reduces external noise. It is designed for ultra-low amplifier noise for amplifying leak responses. It has a peak hold function that appears on the LCD bar graph for comparison of sound levels. It automatically limits the system to enhance weak noise sources for easy listening in the field through the included crystal clear audio headphones for easy listening in the field. In addition to a tactile keypad, this unit has a digital display which is backlit for use in low light conditions. It ships in a heavy duty carrying case for protection in the field and during transport.

It has increased response for poor sound conductors such as pvc pipe or non metallic pipe. Sensors are shielded from outside noises to reduce interference with your searches. A battery test and monitoring system is built into the device. This model has a wide variety of optional compatible ultra sensitive sound microphones. You can select from the following options based on the package you select: Hydrophonic Probe, Sound Rods, Multi Sensor Microphone and the Big Foot Microphone, Multi-Sensor Microphone, Little Foot Microphone.

Key Features of the Fisher XLT-30-C Liquid Leak Detector:

• The Fisher XLT-30 detects and pinpoint liquid leaks in pipes
• Notch filter for external noise suppression
• Ultra low amplifier noise
• Peak hold feature on LCD bar graph for sound comparison
• Automatic limit system to enhance weak noise sources
• Tactile keypad & digital display, backlit for low light usage
• Increased response in poor sound conductors
• Shielded sensor for reduced response from outside noises
• Improved head set for clearer sound response
• Automatic battery test and monitoring
• Operates on two 9 volt batteries

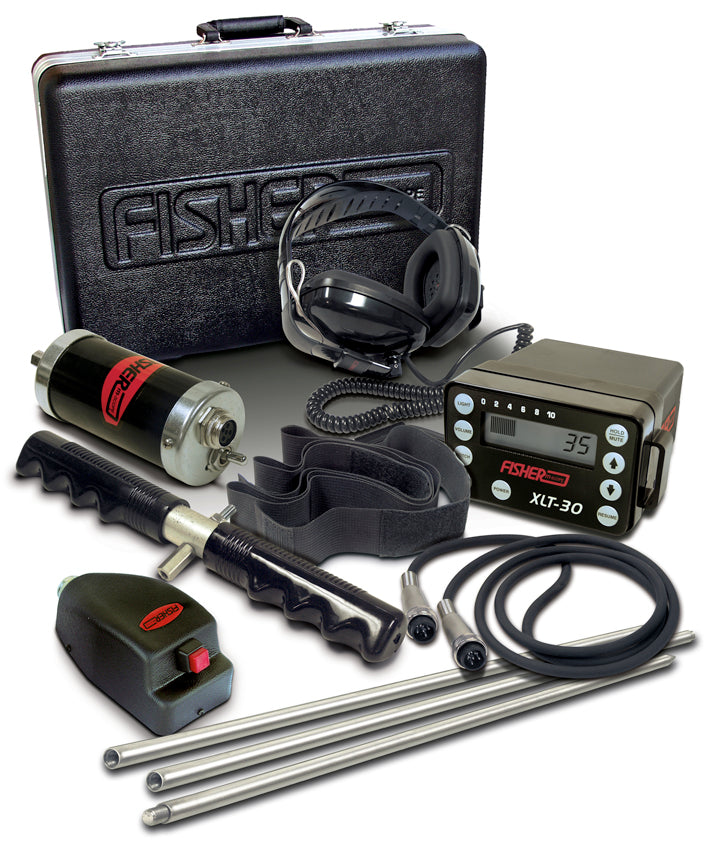

Fisher XLT-30-C comes complete with the following factory packed items:

• Heavy-Duty Carrying Case
• Hydrophonic Cylinder Probe
• Probe Cable Assembly
• Operation Manual
• Control Unit
• Head Phones
• Little Foot
• Carry Strap
• Housing Bracket
• Sound Rods
• WEIGHT:9.5 lbs. (4.3 kg)
• 2 Year warranty from Fisher Labs Industrial

Liquid Leak Detector Specifications:

• Operating Frequency: 60 Hz – 6 kHz, Gain = 95 db | 20 Hz – 60 Hz, Gain > 90 dB
• Filter Types and Frequency Range: All Pass: 60 Hz to 6 kHz
• Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz
• High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz
• Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz
• Notch Filter: Adjustable center frequency rejection from 150 Hz to 2.4 kHz
• Can be used simultaneously with any filter option

Output Indications:

• Audio: High performance headphones (64 ohms)
• Visual: LCD bar graph and 2-digit numeric display
• Grade of Protection: Splash Proof
• Battery Test: Automatic
• Battery Quantity/Type: 2 / 9V Alkaline
• Battery Life: 50 Hours (approximately)
