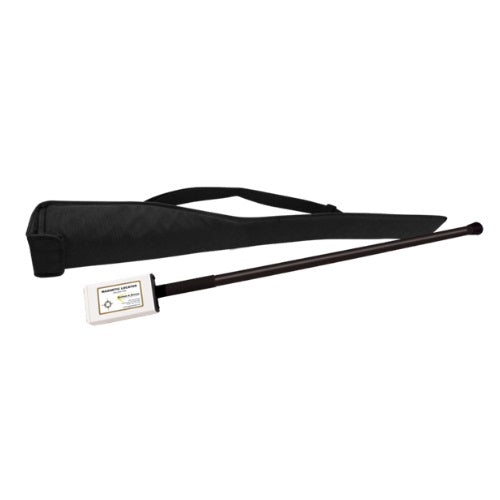

Schonstedt DML2000-XRM Dunham and Morrow Magnetic Locator with Display
Details
Questions Answered

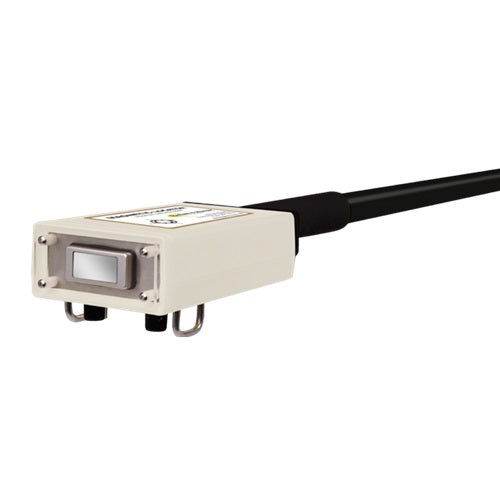

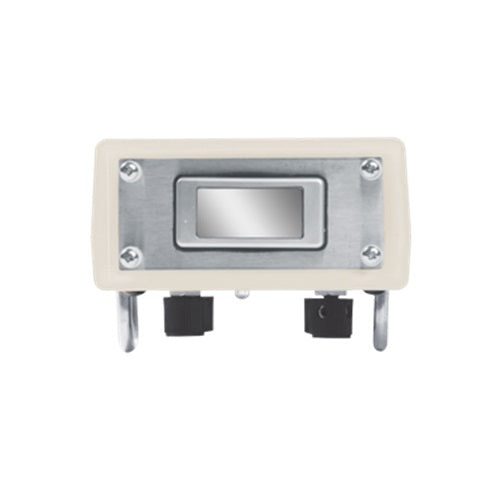

The Metered Version of the DML2000-XR, the DML2000-XRM Magnetic Locator has all of the standard features of the DML2000-XR, plus an easily readable Liquid Crystal Display (LCD) panel meter. The DML2000-XRM with its 3-1/2 digit (0 to ± 1999) Digital Panel Meter, gives the operator a real time, true visual representation of the instrument's output frequency changes, it also provides the highest resolution display of any Magnetic Locator. The digital display provides an exact numeric readout with a separate polarity indicator that can be even more useful to the experienced professional.
When the panel meter peaks and the polarity changes, this normally indicates that you are directly over the end of that pipe section, typically a weld or a "Bell" joint. A polarity change that occurs when the meter readings are at a minimum means you are over the midpoint of that pipe section.
As with any magnetic locator, the importance of the operator's magnetic cleanliness cannot be over-emphasized. Some of the more common sources of local magnetic interference are watches, oxygen tanks, knives, flashlights, and battery operated devices.
The depths outlined here are typical responses. However, there have been numerous instances where targets have been located at greater depths. In almost every case, the magnetic locator operator knew how to get the maximum out of his instrument. He was magnetically clean, his search area contained a minimum amount of trash metal, and he held his instrument in a vertical position while using the instrument on the maximum sensitivity setting.
Target | Depth |
Iron Marker (3/4" x 18") | Up to 9 feet |
Cast-Iron Pipe (4" Pipe) | Up to 10 feet |
Manhole Cover | Up to 10 feet |
Well Casing | Up to 18 feet |
PK Nail (1.5") | Up to 12 inches |
Iron Valve | Up to 10 feet |
55 Gallon drum | Up to 10 feet |
Septic Tank (Handles) | Up to 5 feet |
- Visual Display – 3.5 Digit LCD Panel Meter (0 to ± 1999)
- Dimensions: 42.5" Long x 3.75" Wide x 1.75" Deep
- Audio Output - Variable Frequency (20 – 3,200) Hertz
- Six Sensitivity Settings
- 40 Hours of operation from 4 "AA" Alkaline batteries (increases to over 80 hours when lithium batteries are used).
- Low Battery Indicator - RED Flashing LED
- Optional Analog/Data Logger output – available upon request
- Weighs only 1.8 pounds
Warranty:
The DML2000 magnetic locators are warranted for three years by Dunham & Morrow to be free from defects in material and workmanship. If a defect is noted or your locator is not working properly and requires service, return the locator to Dunham & Morrow for service. The batteries and meter are specifically excluded from this warranty as is exposure of the internal electronics to salt water or battery acid corrosion. If the cause of the instrument failure is found to be misuse, abuse, or neglect the repairs will be billed at cost upon authorization from the customer. Under no circumstances will Dunham & Morrow’s liability exceed the cost to repair or replace the defective parts.
For service – If your locator requires service; be sure to package it securely in a cardboard box (Please do not use Styrofoam peanuts as a filler). If your unit came with a hard plastic carrying case, you can use the plastic case as your package if you tape the twist-lock handles down.
